UNIJUNCTION TRANSISTOR, TO-18; Repetitive Peak Forward Current Itrm: -; Peak Emitter Current: 5?A; Valley Current Iv: 4mA; Transistor Case Style: TO-18; No. of Pins: 3 Pin; Operating Temperature Max: 125°C; Product Range: -; MSL: -; SVHC: No SVHC (15-Jan-2019); Intrinsic Standoff Ratio: 0.75dB; No. of Pins: 3Pins; Operating Temperature Min: -65°C; Operating Temperature Range: -65°C to +125°C; Peak Current: 5?A; Power Dissipation Pd: 300mW; Termination Type: Through Hole

TRANSISTOR, NPN, TO-92; Transistor Polarity: NPN; Collector Emitter Voltage V(br)ceo: 20V; Power Dissipation Pd: 350mW; DC Collector Current: 100mA; DC Current Gain hFE: 120hFE; Transistor Case Style: TO-92; Operating Temperature Max: 150°C; MSL: MSL 1 - Unlimited; SVHC: No SVHC (15-Jan-2019); Collector Emitter Saturation Voltage Vce(on): 200mV; Continuous Collector Current Ic Max: 100mA; Current Ic Continuous a Max: 100mA; Current Ic hFE: 2mA; Gain Bandwidth ft Min: 150MHz; Gain Bandwidth ft Typ: 120MHz; Hfe Min: 125; No. of Transistors: 1; Operating Temperature Min: -55°C; Operating Temperature Range: -55°C to +150°C; Pin Configuration: f; Power Dissipation Ptot Max: 300mW; Termination Type: Through Hole; Voltage Vcbo: 30V

TRANSISTOR, NPN, TO-3; Transistor Polarity: NPN; Collector Emitter Voltage V(br)ceo: 450V; Transition Frequency ft: 1.5MHz; Power Dissipation Pd: 100W; DC Collector Current: 10A; DC Current Gain hFE: 30hFE; Transistor Case Style: TO-3; No. of Pins: 3Pins; Operating Temperature Max: 200°C; MSL: -; SVHC: No SVHC (15-Jan-2019); Av Current Ic: 10A; Continuous Collector Current Ic Max: 10A; Current Ic Continuous a Max: 10A; Current Ic hFE: 1.2A; Fall Time Typ: 0.8?s; Full Power Rating Temperature: 25°C; Gain Bandwidth ft Typ: 1.5MHz; Hfe Min: 30; No. of Transistors: 1; Power Dissipation Ptot Max: 100W; Termination Type: Through Hole; Voltage Vcbo: 1kV

TRANSISTOR, PNP, 2-21F1A; Transistor Polarity: PNP; Collector Emitter Voltage V(br)ceo: 230V; Transition Frequency ft: 30MHz; Power Dissipation Pd: 150W; DC Collector Current: -15A; DC Current Gain hFE: 60hFE; Transistor Case Style: TO-264; No. of Pins: 3Pins; Operating Temperature Max: 150°C; Product Range: -; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (15-Jan-2019); Av Current Ic: 15A; Collector Emitter Saturation Voltage Vce(on): 3V; Continuous Collector Current Ic Max: 15A; Current Ib: 1.5A; Current Ic Continuous a Max: 15A; Current Ic hFE: 1A; Device Marking: 2SA1943; Full Power Rating Temperature: 25°C; Gain Bandwidth ft Typ: 30MHz; Hfe Min: 55; Junction Temperature Tj Max: 150°C; No. of Transistors: 1; Power Dissipation Ptot Max: 150W; Termination Type: Through Hole; Voltage Vcbo: 230V

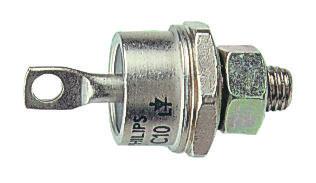

Zener Diode, 20W, 15V, Do-4; Zener Voltage Nom:15V; Power Dissipation:20W; Diode Case Style:do-4; No. Of Pins:2Pins; Operating Temperature Max:175°C; Diode Mounting:stud; Product Range:bzy91C Series; Qualification:- Rohs Compliant: Yes

TRANSISTOR, NPN, TO-92; Transistor Polarity: NPN; Collector Emitter Voltage V(br)ceo: 30V; Transition Frequency ft: 100MHz; Power Dissipation Pd: 625mW; DC Collector Current: 800mA; DC Current Gain hFE: 100hFE; Transistor Case Style: TO-92; No. of Pins: 3Pins; Operating Temperature Max: 150°C; MSL: MSL 1 - Unlimited; SVHC: No SVHC (15-Jan-2019); Collector Emitter Saturation Voltage Vce(on): 600mV; Continuous Collector Current Ic Max: 800mA; Current Ic Continuous a Max: 800mA; Current Ic hFE: 50mA; Gain Bandwidth ft Min: 100MHz; Gain Bandwidth ft Typ: 100MHz; Hfe Min: 100; No. of Transistors: 1; Operating Temperature Min: -55°C; Operating Temperature Range: -55°C to +150°C; Pin Configuration: a; Power Dissipation Ptot Max: 360mW; Termination Type: Through Hole; Voltage Vcbo: 50V

Transistor, NPN, TO-39; Transistor Polarity:NPN; Collector Emitter Voltage V(br)ceo:60V; Transition Frequency ft:100MHz; Power Dissipation Pd:870mW; DC Collector Current:5A; DC Current Gain hFE:40hFE; Transistor Case Style:TO-39; No. of Pins:3Pins; Operating Temperature Max:175°C; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (15-Jan-2019); Collector Emitter Saturation Voltage Vce(on):1V; Continuous Collector Current Ic Max:5A; Current Ic @ Vce Sat:5A; Current Ic Continuous a Max:5A; Current Ic Fall Time Measurement:5A; Current Ic hFE:2A; Device Marking:BSV64; Fall Time @ Ic:1200ns; Full Power Rating Temperature:25°C; Gain Bandwidth ft Min:100MHz; Gain Bandwidth ft Typ:100MHz; Hfe Min:40; No. of Transistors:1; Power Dissipation Ptot Max:870mW; Termination Type:Through Hole; Voltage Vcbo:100V

TRANSISTOR, NPN, TO-3; Transistor Polarity: NPN; Collector Emitter Voltage V(br)ceo: 80V; Transition Frequency ft: 4MHz; Power Dissipation Pd: 150W; DC Collector Current: 10A; DC Current Gain hFE: 50hFE; Transistor Case Style: TO-3; No. of Pins: 2Pins; Operating Temperature Max: 200°C; Product Range: -; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (15-Jan-2019); Collector Emitter Saturation Voltage Vce(on): 800mV; Continuous Collector Current Ic Max: 10A; Current Ic Continuous a Max: 10A; Current Ic hFE: 1A; Full Power Rating Temperature: 25°C; Hfe Min: 50; No. of Transistors: 1; Operating Temperature Min: -65°C; Operating Temperature Range: -65°C to +200°C; Power Dissipation Ptot Max: 150W; Termination Type: Through Hole; Voltage Vcbo: 100V

Bipolar Transistor, Npn, 230V; Transistor Polarity:npn; Collector Emitter Voltage Max:230V; Continuous Collector Current:15A; Power Dissipation:150W; Transistor Mounting:through Hole; No. Of Pins:3Pins; Transition Frequency:30Mhz Rohs Compliant: Yes

TRANSISTOR, NPN, TO-3; Transistor Polarity: NPN; Collector Emitter Voltage V(br)ceo: 80V; Transition Frequency ft: -; Power Dissipation Pd: 150W; DC Collector Current: 15A; DC Current Gain hFE: 20hFE; Transistor Case Style: TO-3; No. of Pins: 2Pins; MSL: -; SVHC: No SVHC (15-Jan-2019); Collector Emitter Saturation Voltage Vce(on): 500mV; Continuous Collector Current Ic Max: 15A; Current Ic Continuous a Max: 15A; Current Ic hFE: 5A; Full Power Rating Temperature: 25°C; Hfe Min: 20; No. of Transistors: 1; Power Dissipation Ptot Max: 150W; Termination Type: Through Hole; Voltage Vcbo: 100V
